Thrust Bearing Types, Features, Applications

1. Introduction

Bearings are essential mechanical components that facilitate smooth motion by reducing friction between moving parts. Among the various types of bearings, thrust bearings play a pivotal role in managing axial loads. These specialized bearings support forces exerted parallel to the shaft, ensuring stability and efficiency in rotating machinery. From automotive applications to heavy industrial equipment, thrust bearings are indispensable for optimal performance. Understanding their history, design principles, and applications provides valuable insights into their engineering significance.

2. History and Evolution of Thrust Bearings

The inception of thrust bearings dates back to the early days of mechanical engineering when simple wooden and bronze bearings were used to support axial loads in primitive machinery. With the advent of the Industrial Revolution, advancements in metallurgy and precision manufacturing led to the development of more durable thrust bearings. The 20th century witnessed groundbreaking innovations, such as rolling element bearings and fluid film technology, enhancing their efficiency and lifespan. Today, thrust bearings are engineered using cutting-edge materials and design techniques, making them more resilient and adaptable to extreme operating conditions.

3. Fundamental Principles of Thrust Bearings

Thrust bearings are designed to handle axial forces while minimizing friction and wear. Their construction varies based on application-specific requirements, but the fundamental principle remains consistent: they create a low-friction interface between moving parts, allowing axial loads to be transferred efficiently.

3.1 How Thrust Bearings Handle Axial Loads

Axial loads, or thrust forces, act along the axis of a rotating shaft. Unlike radial bearings, which primarily manage perpendicular forces, thrust bearings are engineered to resist these axial stresses. They distribute the load across a larger surface area, preventing excessive wear and ensuring stability in rotating systems. This load distribution mechanism enhances operational efficiency and prolongs the bearing’s service life.

3.2 Difference Between Radial and Thrust Bearings

Radial bearings are designed to support forces acting perpendicular to the shaft, making them suitable for handling rotational loads in motors and gear systems. In contrast, thrust bearings cater to axial loads, ensuring smooth motion along the axis. The fundamental distinction lies in their load-bearing orientation and structural design. While radial bearings use rolling elements arranged in a circular raceway, thrust bearings typically employ flat or angular contact surfaces to accommodate axial forces.

3.3 Key Materials Used in Thrust Bearing Manufacturing

Material selection is crucial in determining the durability and performance of thrust bearings. Common materials include:

• High-Carbon Steel: Offers exceptional strength and wear resistance.
• Ceramics: Reduces friction and withstands high temperatures.
• Bronze and Babbitt Alloys: Frequently used in fluid film bearings for superior lubrication properties.
• Polymer Composites: Lightweight and corrosion-resistant, ideal for specialized applications. The choice of material is dictated by operating conditions such as load intensity, temperature, and lubrication availability.

4. Classification of Thrust Bearings

Thrust bearings are categorized based on their structural design and operating principles. The two primary classifications are rolling element thrust bearings and fluid film thrust bearings.

4.1 Rolling Element vs. Fluid Film Thrust Bearings

• Rolling Element Thrust Bearings: These bearings utilize balls or rollers to reduce friction and support axial loads. They offer high efficiency and are commonly used in applications requiring precision and durability.
• Fluid Film Thrust Bearings: These bearings rely on a thin layer of lubricating fluid to create a low-friction interface between moving surfaces. They excel in high-load and high-speed applications, such as turbines and large industrial machinery.

4.2 Comparison of Different Types of Thrust Bearings

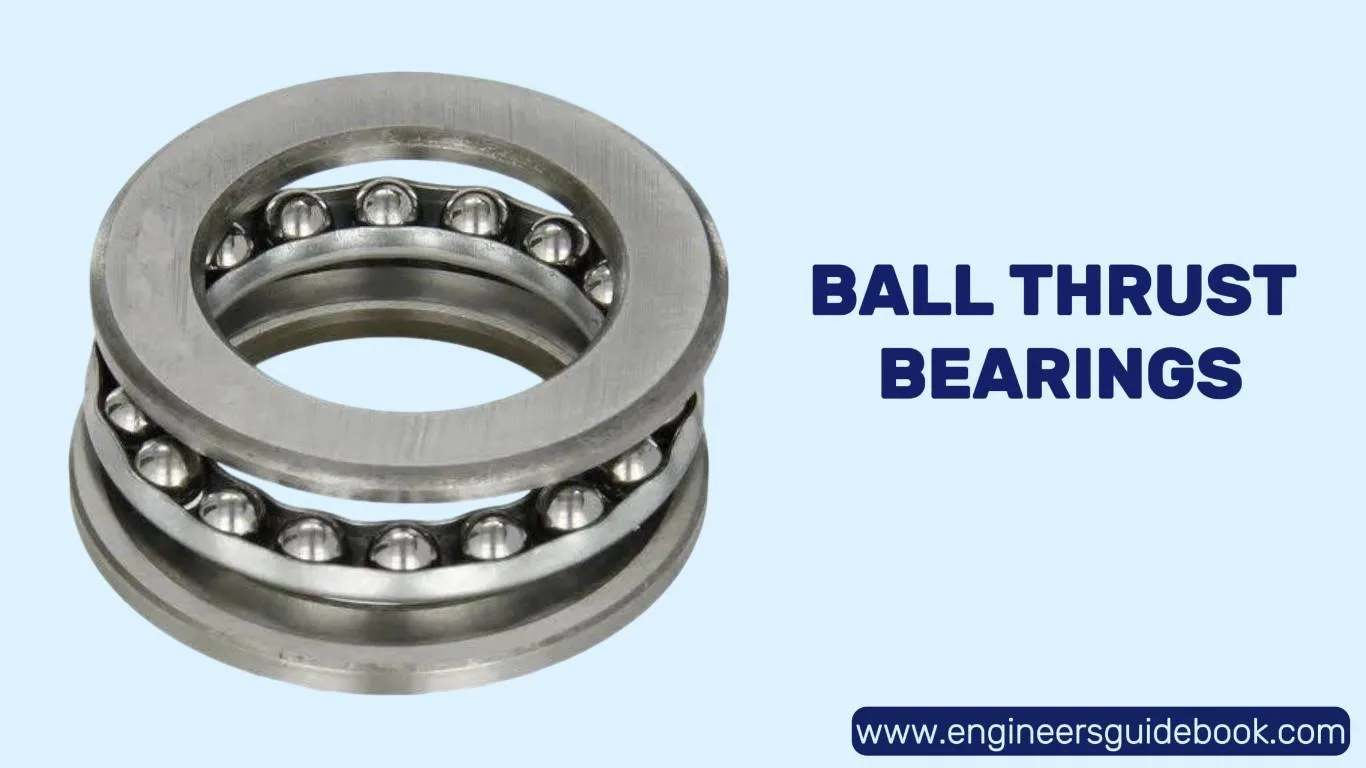

5. Ball Thrust Bearings

Ball thrust bearings are among the most common types, designed for light to moderate axial loads. Their ability to reduce friction while maintaining high efficiency makes them suitable for various applications.

5.1 Structural Composition and Working Mechanism

Ball thrust bearings consist of a series of spherical rolling elements sandwiched between two washer-like raceways. The balls facilitate smooth rotation while reducing axial friction. This configuration allows for efficient load distribution, minimizing wear and extending service life.

5.2 Common Applications in Light-Duty Machinery

Ball thrust bearings are widely used in:

• Automotive steering systems
• Electric motors
• Household appliances
• Low-speed gear assemblies
• Their simplicity and cost-effectiveness make them ideal for applications requiring moderate axial load support.

5.3 Advantages and Limitations

Advantages:

• Low friction and high efficiency
• Cost-effective and readily available
• Simple installation and maintenance

Limitations:

• Limited load capacity compared to roller thrust bearings
• Susceptible to misalignment and impact loads

6. Roller Thrust Bearings

Roller thrust bearings are designed for higher axial loads, offering greater load-carrying capacity than ball thrust bearings.

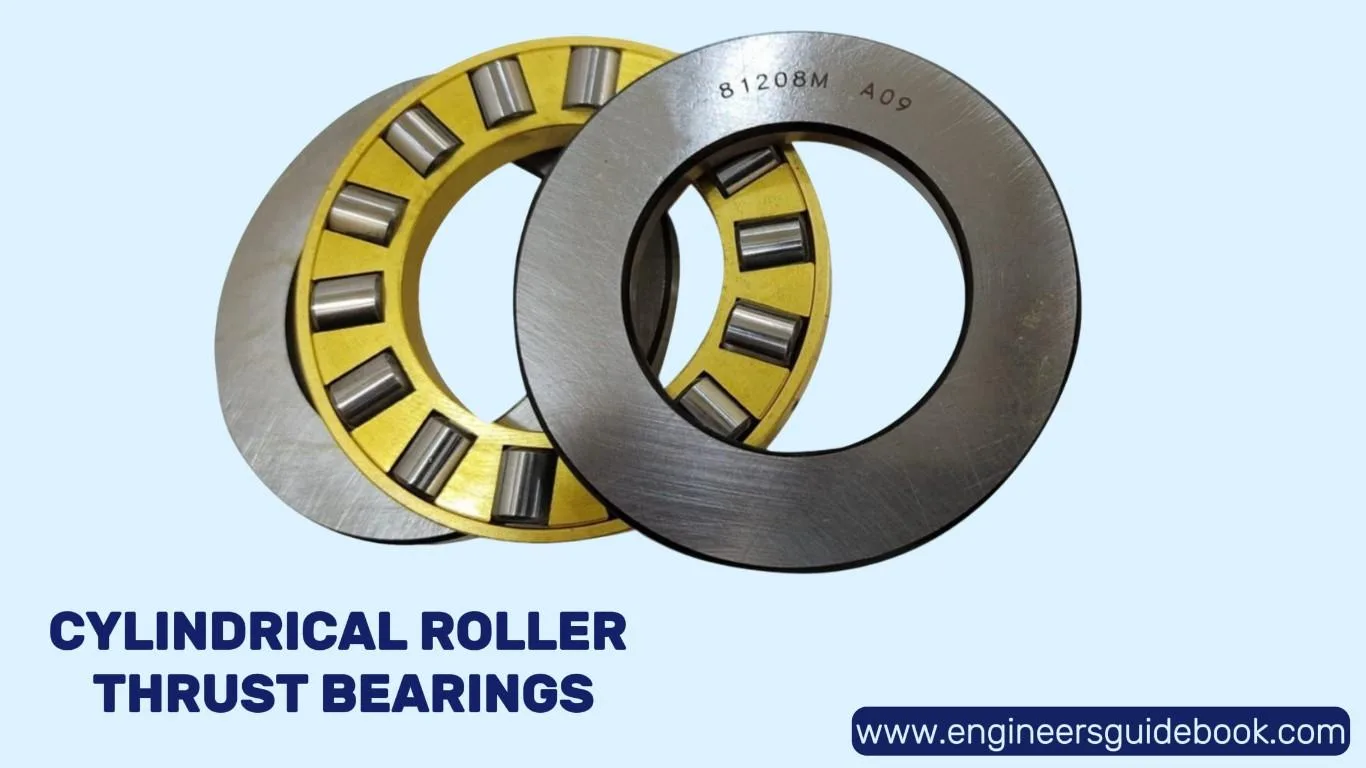

6.1 Cylindrical Roller Thrust Bearings

Cylindrical roller thrust bearings use elongated rolling elements to support heavy axial loads. Their large contact area enhances load distribution, making them suitable for:

• Industrial presses
• Gearboxes
• Large electric motors

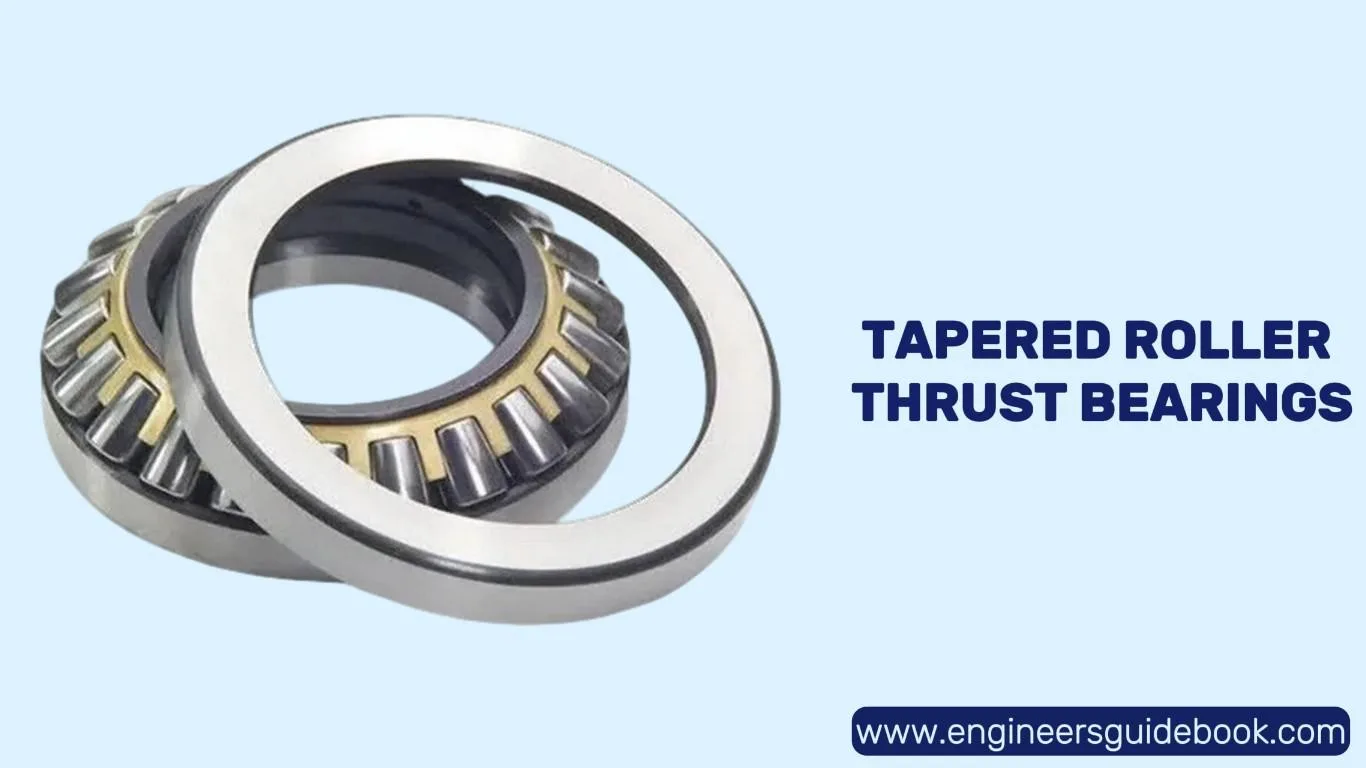

6.2 Tapered Roller Thrust Bearings

Tapered roller thrust bearings are designed to handle both axial and radial loads. Their conical geometry provides enhanced strength, making them ideal for:

• Aerospace propulsion systems
• Automotive differentials
• Heavy-duty construction machinery

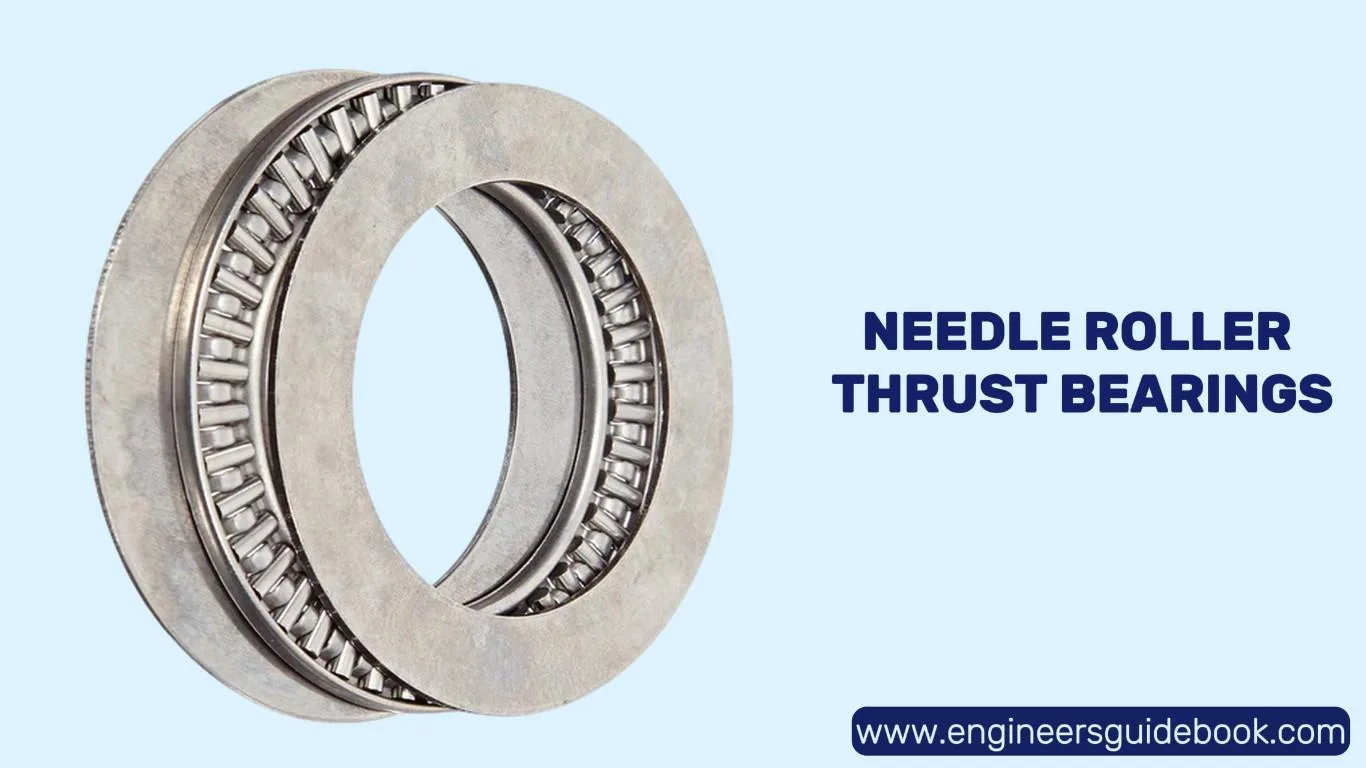

6.3 Needle Roller Thrust Bearings

Needle roller thrust bearings feature thin, cylindrical rollers, offering high load capacity in a compact design. They are used in:

• Precision instruments
• Automotive transmissions
• Small electric motors Their minimal cross-sectional height allows them to fit in space-constrained applications without sacrificing performance.

7. Fluid Film Thrust Bearings

Fluid film thrust bearings operate on the principle of a lubricating film that separates moving surfaces, significantly reducing friction and wear. Unlike rolling element bearings, which rely on direct mechanical contact, fluid film bearings utilize a thin layer of fluid—either oil or another lubricant—to create a near-frictionless interface. These bearings excel in high-load and high-speed applications, where conventional bearings might suffer from excessive heat and wear.

7.1 Hydrodynamic Thrust Bearings

Hydrodynamic thrust bearings function by generating a self-sustaining lubricant film through relative motion between bearing surfaces. As the shaft rotates, it drags lubricant into the converging wedge-shaped space between the surfaces, building up pressure that supports the axial load. This pressure prevents direct contact between surfaces, reducing wear and enhancing efficiency.

Key characteristics include:

• Load Adaptability: The bearing can adjust to varying loads by modulating the lubricant film thickness.
• Thermal Stability: Continuous lubricant circulation dissipates heat, preventing localized hotspots.
• High Durability: The absence of mechanical contact minimizes material degradation, extending service life.

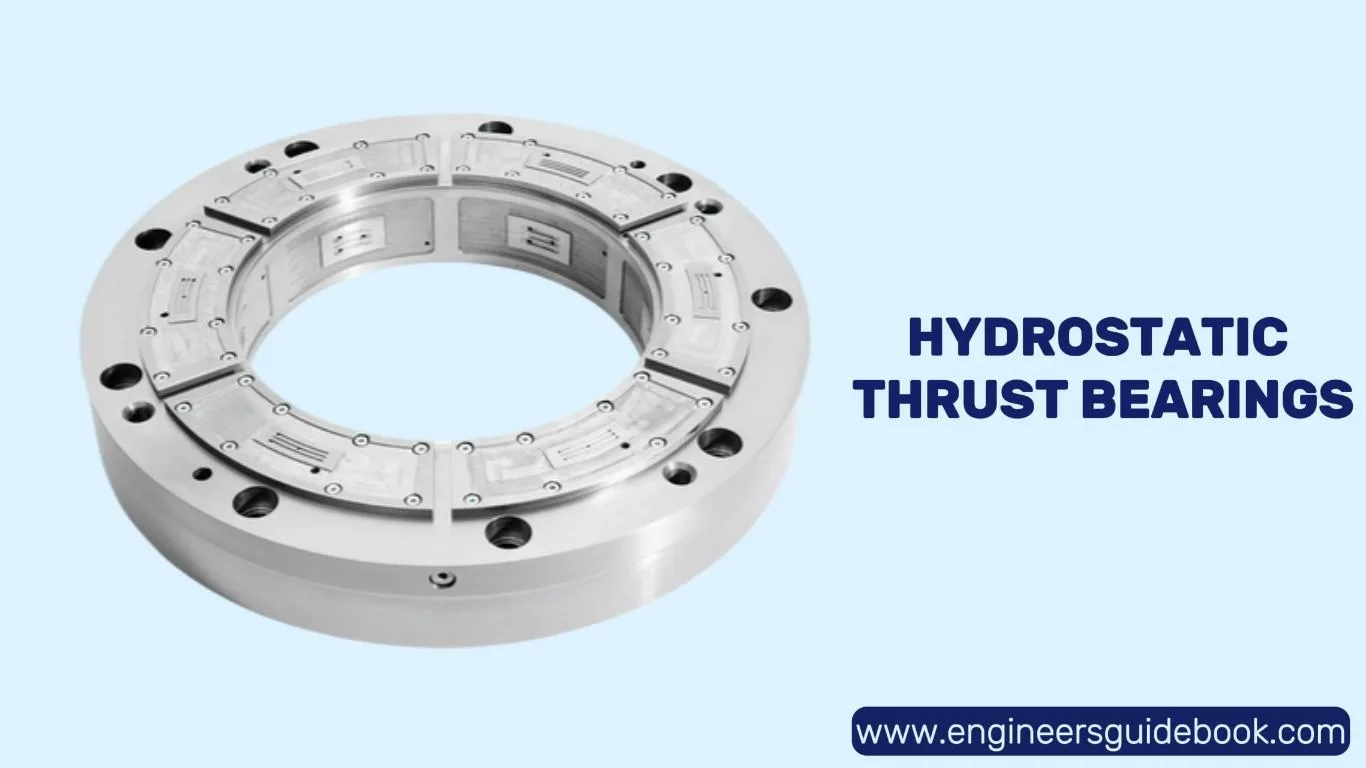

7.2 Hydrostatic Thrust Bearings

Hydrostatic thrust bearings differ from hydrodynamic bearings in that they rely on an external pump to introduce pressurized lubricant into the bearing interface. This pre-established film provides immediate load support, making hydrostatic bearings ideal for applications requiring high precision and minimal start-up friction.

Advantages include:

• Superior Load Capacity: The externally supplied pressure allows these bearings to support extremely high axial loads without metal-to-metal contact.
• Minimal Wear and Tear: Since there is no initial friction, the bearing surfaces remain largely unaffected by repeated start-stop cycles.
• Precision Control: The externally controlled pressure can be adjusted to fine-tune bearing performance based on operational conditions.

8. Magnetic Thrust Bearings

Magnetic thrust bearings represent a revolutionary departure from traditional mechanical bearings by employing magnetic fields to suspend the rotating shaft without physical contact. These bearings eliminate friction entirely, allowing for highly efficient and wear-free operation in extreme environments.

8.1 How Magnetic Levitation Reduces Friction

Magnetic levitation is achieved using either passive permanent magnets or actively controlled electromagnets. In active systems, sensors monitor shaft position and adjust magnetic forces in real time to maintain stability. By suspending the rotating component in a magnetic field, these bearings remove mechanical contact points, drastically reducing energy losses and eliminating the need for lubrication.

8.2 Key Applications in High-Speed Rotating Machinery

Due to their ability to operate at high speeds with minimal energy dissipation, magnetic thrust bearings are utilized in:

• Turbo machinery: Used in high-speed turbines and compressors where minimal friction is critical.
• Aerospace systems: Provides maintenance-free operation in satellite gyroscopes and reaction wheels.
• Medical equipment: Utilized in precision surgical tools and blood pumps, where contamination from lubricants must be avoided.

9. Key Features of Thrust Bearings

9.1 Load-Carrying Capacity and Design Considerations

Thrust bearings are designed to handle significant axial loads while maintaining stability. Load capacity is influenced by factors such as:

• Bearing geometry: The surface area and curvature impact load distribution.
• Material selection: High-strength alloys and composite materials improve load tolerance.
• Lubrication efficiency: Ensuring a stable lubricant film enhances load-bearing performance.

9.2 Heat Dissipation and Cooling Mechanisms

Efficient heat dissipation is critical to bearing longevity. Cooling techniques include:

• Oil circulation systems: Active cooling using pumped lubricant.
• Heat sinks and fins: Passive thermal management via enhanced surface area.
• External cooling loops: Incorporation of coolant channels in high-temperature applications.

9.3 Lubrication Techniques for Optimal Performance

Proper lubrication is essential to minimize friction and prevent surface damage. Common lubrication methods include:

• Grease lubrication: Ideal for low-speed applications with intermittent operation.
• Oil mist lubrication: Used in high-speed bearings where minimal lubricant consumption is desired.
• Pressurized lubrication: Ensures continuous lubricant flow for critical applications.

9.4 Wear Resistance and Longevity Enhancements

Advancements in wear resistance include:

• Surface treatments: Hard coatings like DLC (diamond-like carbon) improve durability.
• Material innovations: Composite ceramics provide superior hardness and wear resistance.
• Self-lubricating materials: Polymer-based bearings reduce dependency on external lubrication.

10. Applications of Thrust Bearings Across Industries

10.1 Aerospace

Thrust bearings in aerospace systems must withstand extreme speeds, temperature variations, and dynamic loads. They are used in jet engines, satellite mechanisms, and space exploration equipment.

10.2 Automotive

In automotive applications, thrust bearings reduce friction in gear assemblies, differentials, and torque converters, enhancing fuel efficiency and vehicle longevity.

10.3 Power Generation

Power plants rely on thrust bearings to support high-speed turbine shafts, preventing axial movement and ensuring stable electricity generation.

10.4 Marine Engineering

Marine propulsion systems utilize thrust bearings to manage axial loads from propeller shafts, ensuring smooth and efficient operation even under heavy loads.

10.5 Heavy Machinery

In heavy industries, thrust bearings support massive axial loads in hydraulic presses, cranes, and other high-force applications.

11. Common Failures in Thrust Bearings and Prevention Strategies

11.1 Overloading and Misalignment Issues

Thrust bearings are designed to handle specific axial loads, but exceeding these limits can lead to premature failure. Overloading causes excessive stress on the bearing surfaces, leading to deformation, fatigue, or even catastrophic failure. Misalignment, on the other hand, results in uneven load distribution, creating localized stress points that accelerate wear. Proper installation, load balancing, and precision alignment techniques help mitigate these risks.

Preventative Measures:

• Ensuring proper shaft alignment during installation and regular maintenance.
• Using load-sharing mechanisms to prevent excessive stress on a single bearing.
• Implementing condition monitoring systems to detect misalignment early.

11.2 Lubrication Deficiencies and Contamination

Lubrication is vital for minimizing friction and wear in thrust bearings. Insufficient or degraded lubrication can cause metal-to-metal contact, increasing heat generation and accelerating surface damage. Additionally, contaminants such as dirt, water, or metal particles can enter the lubricant, leading to abrasive wear and reduced bearing lifespan.

Preventative Measures:

• Conducting routine lubricant analysis to assess viscosity, contamination levels, and degradation.
• Using high-quality lubricants suited for specific operating conditions.
• Implementing filtration and sealing systems to prevent contaminants from entering the bearing.

11.3 Thermal Expansion and Its Effects on Bearing Integrity

Thrust bearings operate in environments where temperature fluctuations can lead to thermal expansion of materials. If not accounted for, this can result in dimensional changes, leading to increased internal stresses, reduced clearances, and, in extreme cases, seizure or failure of the bearing.

Preventative Measures:

• Selecting materials with low thermal expansion coefficients or high thermal stability.
• Designing bearings with expansion compensation features, such as clearances or floating elements.
• Employing active cooling techniques, such as oil circulation or heat dissipation fins, to manage temperature rise.

12. Selection Criteria for Thrust Bearings

12.1 Factors Influencing Bearing Choice for Specific Applications

The selection of a thrust bearing depends on several critical parameters:

• Load Capacity: The bearing must support the expected axial load without premature failure. Different bearings handle varying levels of static and dynamic loads.
• Speed: High-speed applications require bearings with low friction and effective heat dissipation to prevent overheating.
• Environmental Conditions: Factors such as temperature, moisture, and exposure to contaminants influence the choice of materials and lubrication methods.
• Material Compatibility: Bearings must be made of materials that resist wear, corrosion, and thermal expansion while maintaining structural integrity under operational stresses.

12.2 Cost vs. Performance Trade-offs in Bearing Selection

When choosing a thrust bearing, a balance must be struck between upfront costs and long-term performance:

• Initial Investment: High-performance bearings, such as those made from advanced ceramics or composites, may have a higher cost but offer extended service life.
• Operational Efficiency: Bearings with superior lubrication systems or low-friction designs reduce energy losses and maintenance costs.
• Maintenance and Replacement: Lower-cost bearings may require frequent servicing or early replacement, increasing lifecycle costs.
• Application Demands: For critical machinery, investing in premium bearings reduces downtime and enhances reliability, justifying the higher expense.

15. Conclusion

Thrust bearings play a crucial role in managing axial loads across various industries. Their design, material selection, and lubrication strategies dictate their performance and lifespan. Advancements in materials and smart monitoring technologies continue to enhance bearing reliability, ensuring efficiency in high-stress applications. Proper selection, maintenance, and monitoring are essential to maximize operational longevity and performance.

16. FAQS

1. What is a thrust bearing, and how does it differ from other types of bearings?

A thrust bearing is a type of rotary bearing designed to support axial loads—forces that act parallel to the shaft. Unlike radial bearings, which primarily manage forces perpendicular to the shaft, thrust bearings prevent axial movement and stabilize rotating components under load.

2. What are the main types of thrust bearings?

Thrust bearings come in various types, including:

• Fluid Film Thrust Bearings (Hydrodynamic & Hydrostatic)
• Magnetic Thrust Bearings
• Ball Thrust Bearings
• Roller Thrust Bearings
  Each type is suited for different applications based on load capacity, speed, and lubrication requirements.

3. Where are thrust bearings commonly used?

Thrust bearings are widely used across industries such as:

• Aerospace (jet engines, gyroscopes)
• Automotive (gearboxes, differentials)
• Power Generation (turbines, generators)
• Marine Engineering (propeller shafts)
• Heavy Machinery (industrial presses, cranes)

4. How do hydrodynamic and hydrostatic thrust bearings differ?

Hydrodynamic thrust bearings generate a self-sustaining lubricant film through the rotation of the shaft, while hydrostatic thrust bearings rely on an external pump to maintain a pressurized lubrication film. Hydrostatic bearings are ideal for high-precision applications and large loads, whereas hydrodynamic bearings are better suited for continuous high-speed operations.

5. What are the advantages of magnetic thrust bearings?

Magnetic thrust bearings use electromagnetic forces to levitate the rotating shaft, eliminating mechanical contact. This results in:

• Zero friction and wear
• No need for lubrication
• High efficiency and energy savings
• Suitability for high-speed and extreme environments

6. How do you determine the right thrust bearing for an application?

Choosing the right thrust bearing depends on:

• Load requirements (axial force magnitude and direction)
• Speed and operating conditions (high-speed or high-temperature environments)
• Lubrication needs (grease, oil, or fluid film bearings)
• Space constraints and installation factors

7. What are the common causes of thrust bearing failure?

The most common reasons for thrust bearing failure include:

• Overloading – Excessive axial forces exceeding the bearing’s capacity
• Lubrication failure – Inadequate or contaminated lubricant
• Misalignment – Improper shaft positioning causing uneven load distribution
• Thermal expansion – Excessive heat leading to material deformation

8. How can the lifespan of thrust bearings be extended?

To maximize thrust bearing longevity:

• Follow proper lubrication schedules to prevent dry running and overheating.
• Ensure correct alignment during installation and maintenance.
• Monitor operating conditions using predictive maintenance techniques.
• Use high-quality materials and coatings to enhance wear resistance.

9. What are some advancements in thrust bearing technology?

Recent innovations include:

• Advanced materials – Composite ceramics and DLC coatings improve durability.
• Smart bearings – Integrated sensors enable real-time condition monitoring.
• Self-lubricating designs – Reducing the need for external lubrication systems.

10. How often should thrust bearings be inspected and maintained?

Inspection frequency depends on the application, but general guidelines include:

• Routine inspections every few months for visual wear and misalignment.
• Lubrication checks according to manufacturer recommendations.
• Vibration and temperature monitoring for early fault detection.
• Comprehensive overhauls annually for high-load or high-speed applications.
